VuScape

Custom Video Wall Controller

Customized visualization solutions for professional applications.

VuScape is a high performance video wall controller ideal for command centers, control rooms, and display signage. Easily control and distribute all content sources to any display on your network with the utmost flexibility and full-featured management software.

User Friendly

Video wall control made easy. Our systems are easy to deploy, easy to use and easy to manage.

Future Proof

Open architecture, standards-based, and interoperable with 3rd party solutions.

Dependability

Optimized for real-time throughput providing reliable 24/7 operations.

Modular & Scalable

Only buy what you need. Our system can grow with you as your needs change.

TRx for Easy Management

Powerful software with endless ways to control and manage large screens. Intuitive and easy to use, it is simple to collaborate between multiple screens and operators.

TRx 3 4 laptop
card prod vuscape 1

Bridging AV and IT

All these sources can be captured into one system. This gives the freedom to display just anything, and thus close the gap between the different formats of sources.

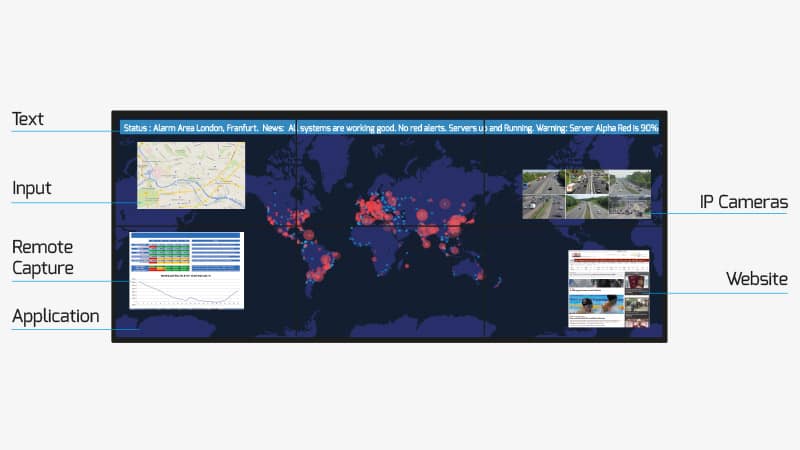

Big Data Visualization

VuScape can display any kind of content coming from cloud/network based solutions such as websites, data, third party SCADA, business analytics and social media data.

card prod vuscape 2
card prod vuscape 4b4

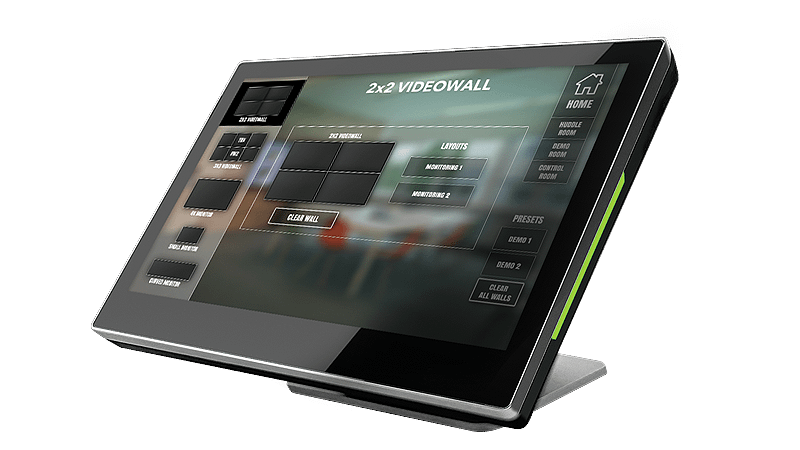

Touch Panel Control

Give operators the freedom to change layouts and control devices with a simple touch. Create fully customized panels from our web-based control panel designer, quickly and easily, without any programming skills.

Workflow

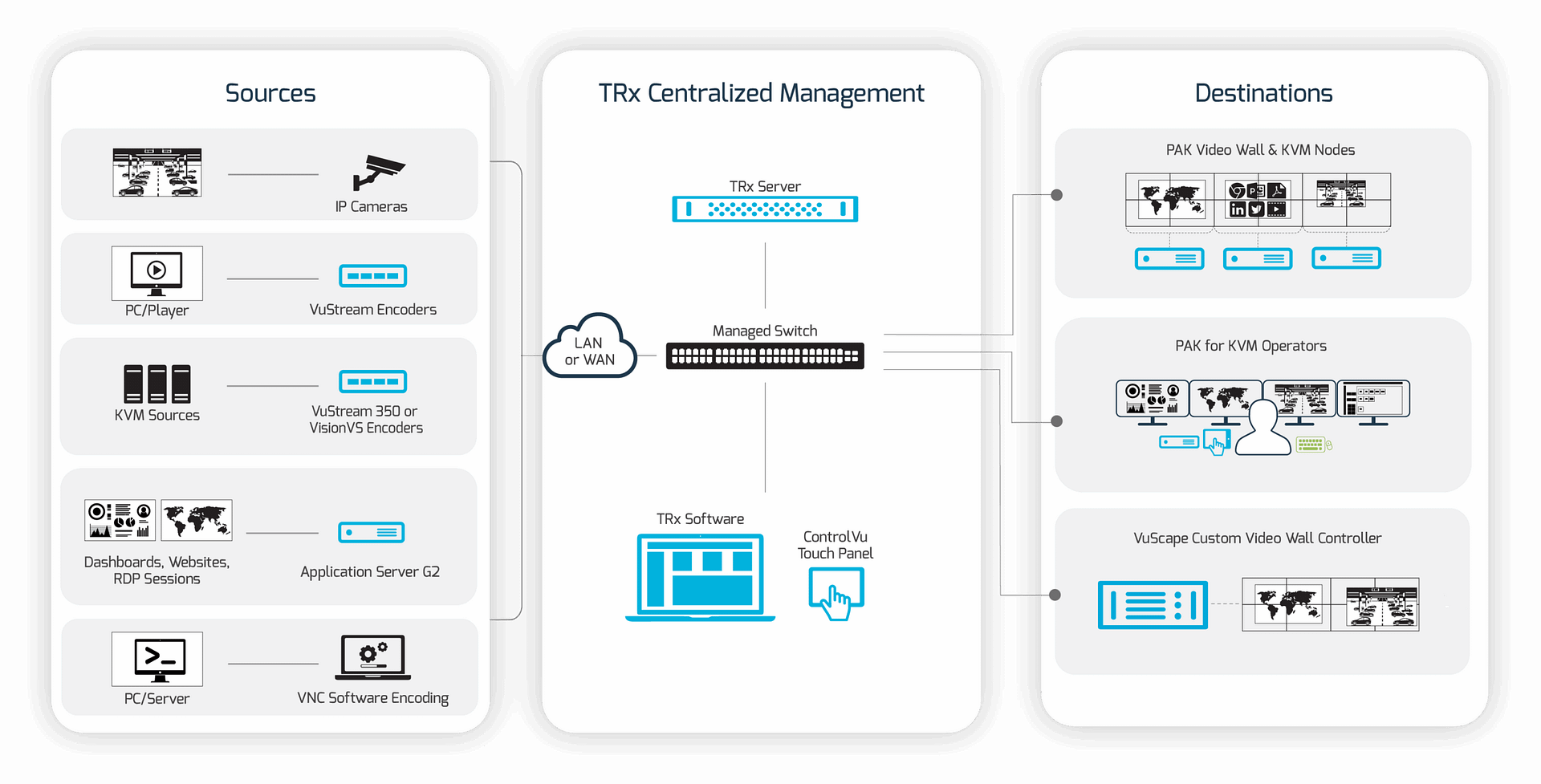

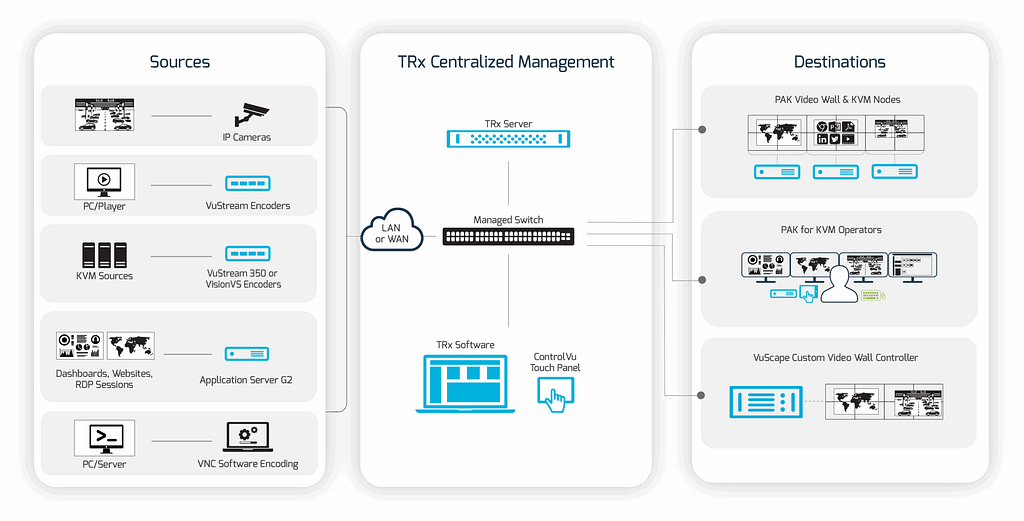

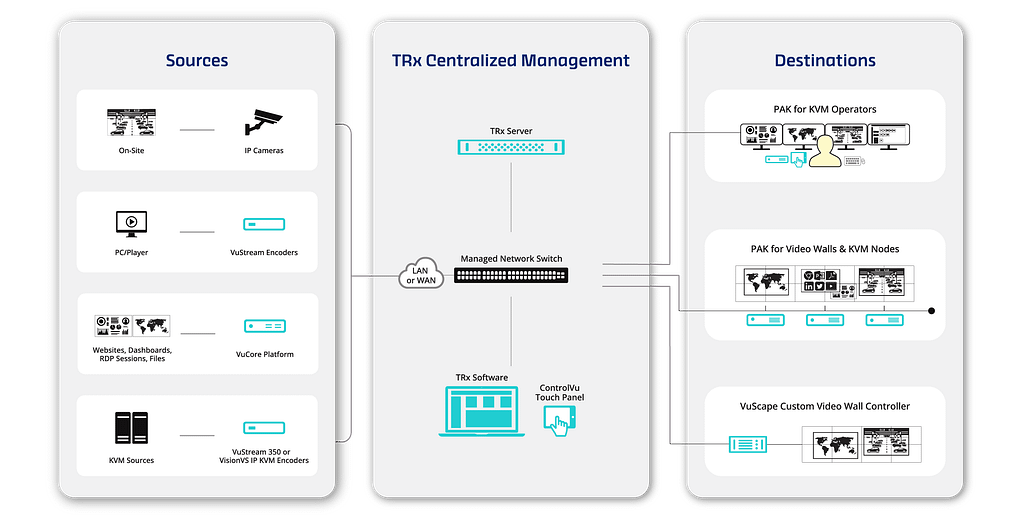

A workflow diagram illustrating VuWall's centralized video wall and KVM management system. On the left, various sources like cameras, PCs, and applications are encoded using VuStream encoders and the Application Server. The encoded streams are sent over a managed network switch to the TRx server and software in the center. Operators can control the system using the TRx software and ControlVu touch panel. On the right, the processed content is decoded and displayed on video walls and KVM workstations via PAK nodes.

Selecting the Right Controller

VS10VuScape VS60VuScape VS120VuScape VS280VuScape VS400
VuScapeVS10VS60VS120VS280VS640
Ideal forSmall video wall with limited space & network sources onlySmall video wall with
limited space and
need for GPU and
decoding
Midsize video wall with more inputs & outputs and need for GPU & more IP decoding powerMidsize video wall with more inputs & outputs and need for GPU & more IP decoding powerLarge video wall with many inputs, outputs and IP decoding

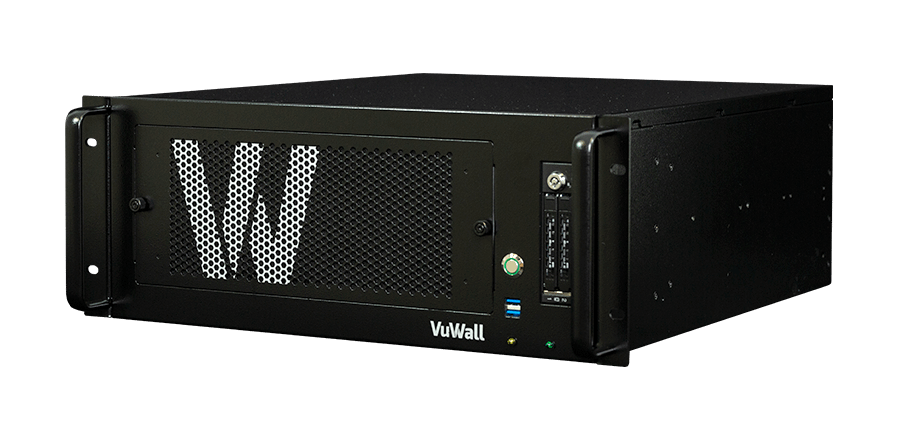

Form factorVESA MountTowerRackmount 4RURackmount 4RURackmount 4RU each
Max outputs4x 4K4x 4K16x 4K16x 4K24x 4K or 48x HD
Max inputs4x 4K12x 4K24x 4K32x 4K and/or 64x HD
Max simultaneous IP streams16x HD / 2x 4K16x HD / 4x 4K48x HD / 12x 4K96x HD / 24x 4K192x HD / 48x 4K
Network sourcesRTSP, websites, VNC, pictures, text, video filesRTSP, websites, VNC, pictures, text, video filesRTSP, websites, VNC, pictures, text, video filesRTSP, websites, VNC, pictures, text, video filesRTSP, websites, VNC, pictures, text, video files
Windows 10 application

Extend the Power of VuScape

Need to manage several video walls?
TRx 270x150 1

TRx

Centralized Management
Need video wall control at your fingertips?
Web ControlVu 270x150 1

ControlVu

Touch Panel
Need to deliver content across your network?
VuStream 150 Front Angle

VuStream

Encoders
